LED Display Digital Tube PATIKIL 7-Segment Green 0.56 inch 10 Pack

Description

Product Overview

The PATIKIL LED Display Digital Tube is engineered as a 7‑segment green module that delivers crisp, high‑visibility numeric output. With a character height of 0.56 inch, the display is optimized for compact spaces while still providing legible readouts from a distance of several feet. Each module operates at a low 3.3 V supply, making it compatible with a wide range of microcontroller platforms and driver circuits commonly used in industrial automation and hobbyist projects.

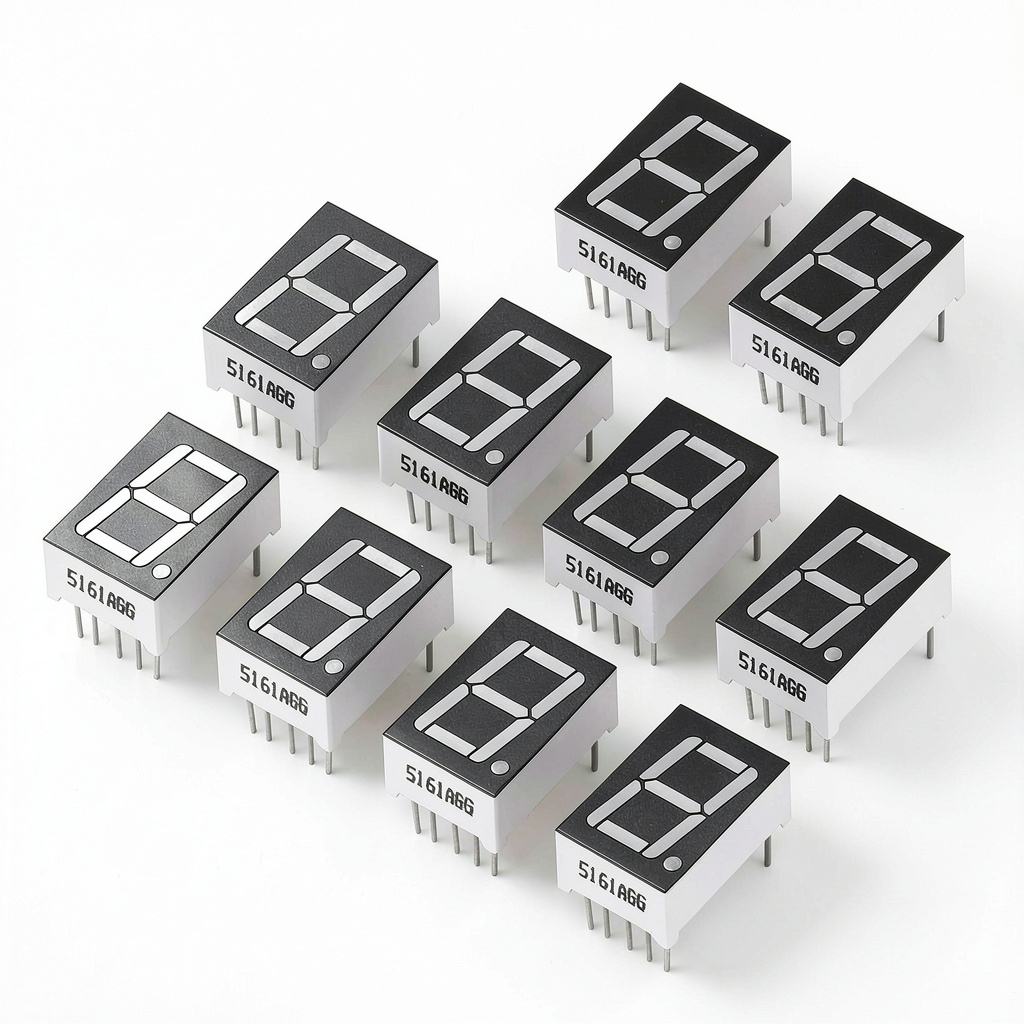

Constructed from a robust polymer housing and high‑quality LED elements, the module offers excellent resistance to mechanical shock, vibration, and temperature fluctuations. The common‑cathode configuration simplifies wiring by allowing a single ground connection for all segments, reducing the number of required traces on a PCB and minimizing potential points of failure. The package includes ten identical units, enabling designers to create multi‑digit displays or replace faulty units without delay.

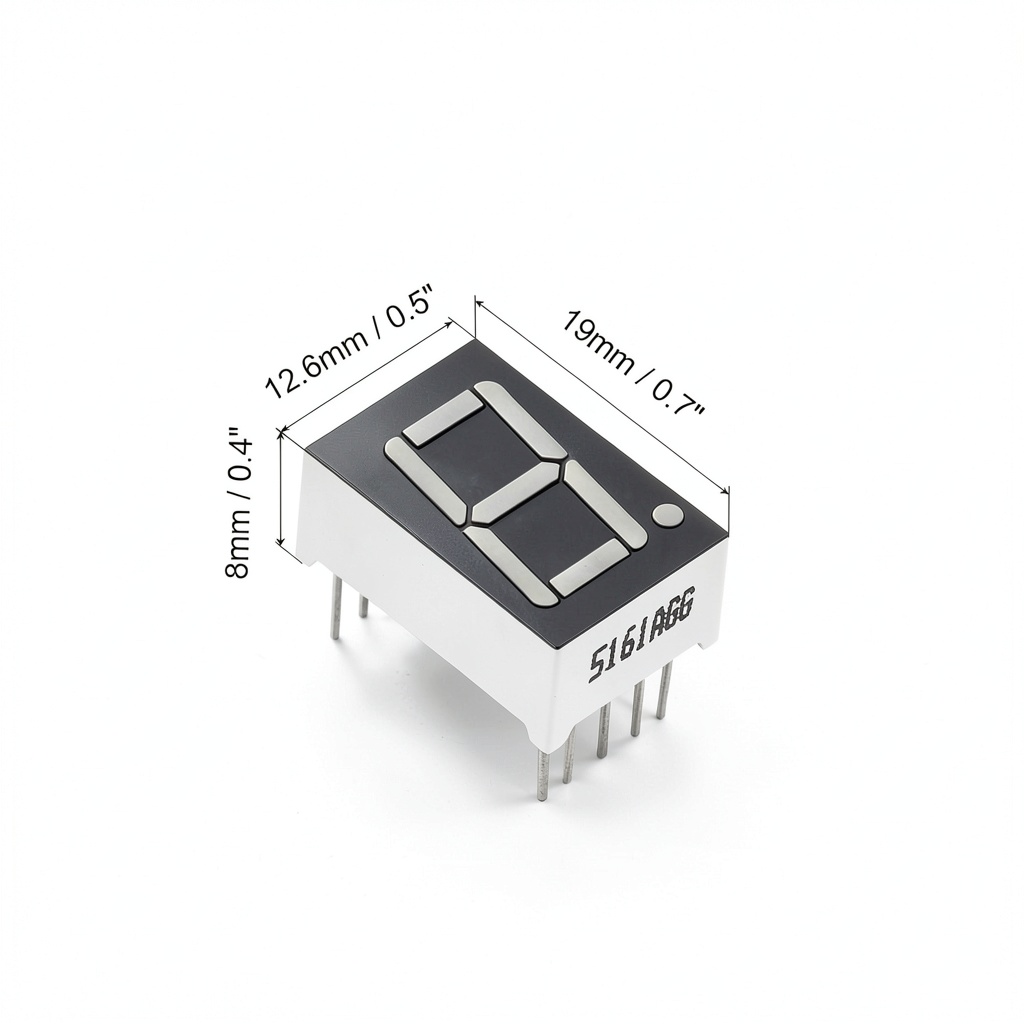

Technical specifications are carefully balanced to meet the demands of demanding applications. The module dimensions measure 12.6 mm × 19 mm × 8 mm, and the total weight is only 1.41 oz per pack, ensuring minimal impact on overall system weight. The green color provides a classic aesthetic that is still highly visible under various lighting conditions, and the LED forward voltage of 3.3 V ensures low power consumption while maintaining brightness.

Usage

These LED segment displays are ideally suited for a broad spectrum of industrial and consumer applications. In control panels for manufacturing equipment, the modules can present real‑time status codes, error numbers, or operational counters, allowing operators to quickly assess machine conditions. Their compact size makes them perfect for integration into handheld devices, portable measurement tools, and custom instrumentation where space is at a premium.

Advertising signage and electronic billboards benefit from the bright green illumination, which stands out against both dark and light backgrounds. When combined into an array, the modules can form alphanumeric messages, numeric counters, or scrolling displays for promotional content. Additionally, hobbyists building LED matrix displays or DIY clock projects will find the plug‑in design eliminates the need for complex soldering, accelerating prototype development.</n

Installation is straightforward: each module features a 10‑pin plug‑in header that aligns with standard driver boards. Users simply insert the module into the corresponding socket, apply the 3.3 V supply, and configure the segment control logic in software. No additional resistors or wiring harnesses are required, reducing assembly time and potential errors. The modules are also reusable, allowing for easy upgrades or reconfiguration of existing systems.

Why Choose Us

Choosing PATIKIL means selecting a brand with a proven track record in optoelectronic components. The company’s commitment to quality control is evident in the consistent performance of each LED segment display, as reflected by a 5‑star rating from verified customers. Rigorous testing procedures verify that every unit meets or exceeds industry standards for brightness, power efficiency, and durability.

Our modules are designed with the end‑user in mind. The lightweight, impact‑resistant housing protects the LEDs from accidental drops and harsh handling, extending product lifespan even in rugged environments. The common‑cathode architecture reduces the complexity of wiring diagrams, making it easier for engineers and technicians to integrate the displays into existing systems without extensive redesign.

Beyond the hardware, PATIKIL provides responsive technical support and comprehensive documentation, including wiring diagrams, example code snippets, and troubleshooting guides. Should any issues arise, our dedicated after‑sales team is available to assist with rapid resolution, ensuring minimal downtime for your projects. This combination of reliable hardware and attentive service creates a compelling value proposition for both large‑scale manufacturers and individual makers.

Key Features

• Compact 0.56‑inch character height delivers clear visibility in tight spaces
• Low 3.3 V operating voltage reduces power consumption while maintaining brightness
• Durable polymer housing resists impact, vibration, and temperature extremes
• Plug‑in 10‑pin design enables quick, solder‑free installation for rapid prototyping
• Comprehensive technical support and documentation ensure smooth integration and long‑term reliability

FAQ

What voltage does the LED display require?

The module is designed to operate at a nominal 3.3 V supply, which is compatible with most microcontroller logic levels and driver circuits. This low voltage helps to keep overall system power consumption low while still providing bright illumination.

Can the display be used in a multi‑digit configuration?

Yes. Because each unit is a single‑digit, common‑cathode module, you can cascade multiple displays to create multi‑digit numbers or alphanumeric strings. The plug‑in connectors simplify wiring, and the common‑cathode arrangement allows all digits to share a single ground line.

Is the green LED color suitable for outdoor use?

The green color offers high visibility under both daylight and low‑light conditions, making it a good choice for outdoor signage, vehicle dashboards, and other applications where ambient lighting varies. However, for extreme sunlight exposure, consider adding a diffuser or protective enclosure to maintain readability.

What is the expected lifespan of the LED segments?

Patikil’s LED segments are rated for tens of thousands of hours of continuous operation. With proper voltage regulation and thermal management, the modules can reliably function for many years in industrial or consumer environments.

Do you provide any warranty or guarantee?

All PATIKIL LED segment displays come with a standard one‑year limited warranty covering manufacturing defects. If a unit fails within the warranty period, we will replace it promptly, and our support team can assist with troubleshooting to prevent future issues.
