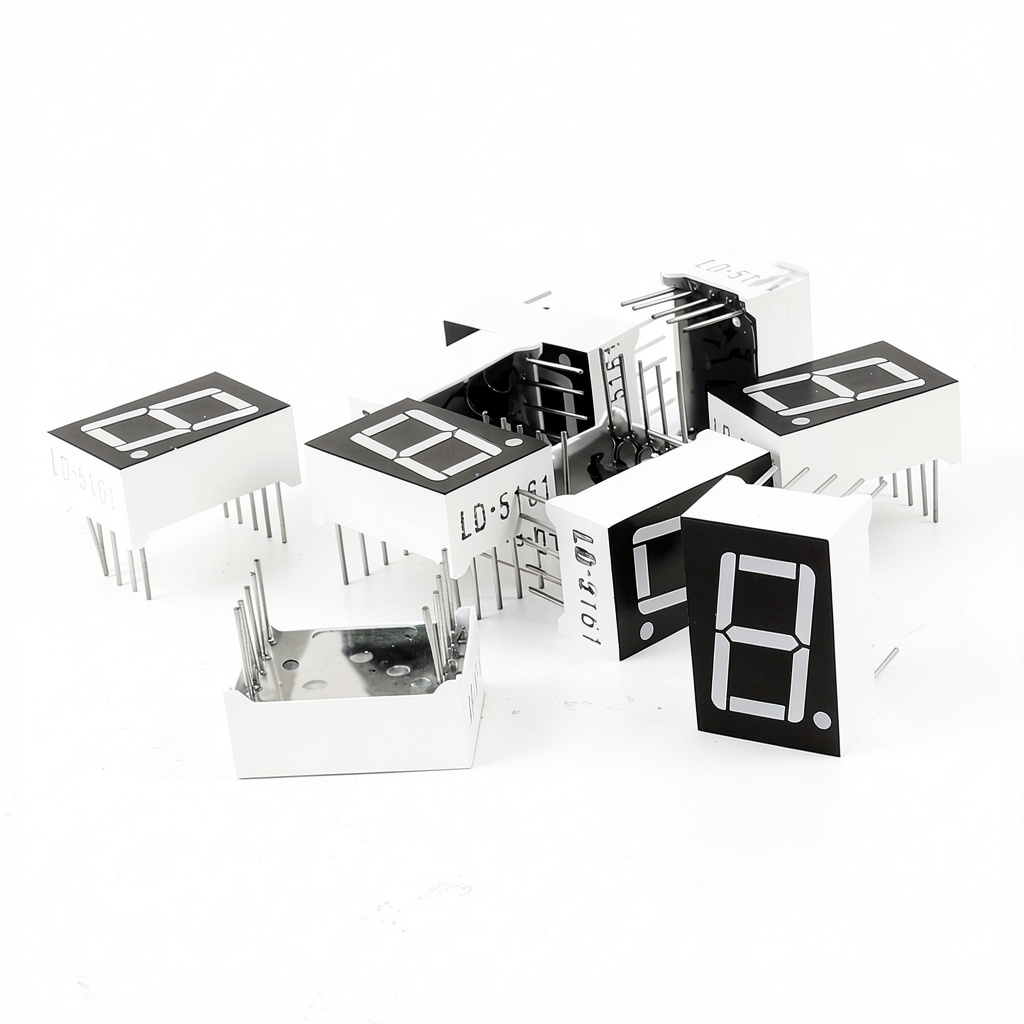

uxcell LED Digital Tube 10-Pin Common Cathode Red 0.56″ 10pcs Pack

Description

Product Overview

The uxcell 10‑pin common cathode LED digital tube is a precision‑engineered component designed for a wide range of electronic applications. Featuring a vivid red 7‑segment display, this module provides clear numeric readout in a compact form factor measuring just 0.56 inches in height. The device utilizes a standard 2.54 mm (0.1 inch) pin pitch, making it fully compatible with typical breadboard layouts and printed circuit board designs. Constructed from high‑quality plastic housing and reinforced metal leads, the tube offers durability that withstands repeated soldering cycles and harsh operating environments.

Each tube incorporates ten pins, with a common cathode configuration that simplifies wiring for multiplexed display systems. The common cathode design allows multiple tubes to share a single ground connection, reducing the overall component count and simplifying driver circuitry. The red LED segments are engineered for high brightness and low power consumption, delivering a crisp visual output while maintaining energy efficiency. With a product weight of only 0.01 ounces, the tubes are lightweight yet robust, ensuring reliable performance in both prototype and production settings.

Designed for versatility, the uxcell LED digital tube is suitable for hobbyist projects, educational kits, and professional industrial panels. Its compact dimensions (19 × 13 × 7 mm) enable integration into tight spaces, while the clear segment definition ensures readability from a distance. The module is rated for a forward voltage of approximately 2.0 V per segment and a typical forward current of 20 mA, providing a balance between brightness and power usage. The product is listed under the category of LED Segment Displays, reflecting its role as a core visual indicator in electronic assemblies.

Usage

In hobbyist environments, the uxcell LED digital tube serves as an ideal component for building digital clocks, counters, and scoreboards. Its straightforward wiring and common cathode architecture enable enthusiasts to quickly prototype functional displays using microcontrollers such as Arduino, Raspberry Pi, or ESP32. The bright red segments are especially useful for low‑light conditions, ensuring that numeric information remains visible even in dimly lit rooms or outdoor night‑time setups.

For educational purposes, the tube provides a hands‑on learning tool for students studying electronics, digital logic, and display technologies. Instructors can demonstrate concepts such as multiplexing, segment control, and voltage regulation using this readily available module. The clear labeling of pins and the standard 2.54 mm pitch simplify the teaching process, allowing learners to focus on circuit design rather than component compatibility.

In industrial applications, the uxcell LED digital tube is frequently employed in equipment panels, instrumentation readouts, and status indicators. Its robust construction and reliable performance make it suitable for environments where durability and consistent visual output are critical. Whether used in manufacturing control panels, vending machine displays, or medical device interfaces, the tube delivers accurate numeric representation that operators can trust.

Why Choose Us

Choosing the uxcell LED digital tube means selecting a component backed by a reputable manufacturer with a track record of quality and consistency. uxcell has been providing electronic components to the global market for over a decade, ensuring that each product meets stringent industry standards. The tube’s design incorporates rigorous testing for brightness uniformity, color consistency, and long‑term reliability, giving customers confidence in its performance over the lifespan of their projects.

Our commitment to customer satisfaction extends beyond the product itself. We offer responsive technical support, detailed datasheets, and application notes to assist engineers and makers in integrating the tube into their designs. Should you encounter any issues, our knowledgeable support team is ready to provide troubleshooting guidance, ensuring that your development process remains smooth and efficient.

Furthermore, the uxcell LED digital tube is competitively priced, offering excellent value without compromising on quality. The package includes ten individual tubes, allowing bulk purchasers to benefit from economies of scale while maintaining a low per‑unit cost. This makes the product an attractive choice for both small‑scale hobby projects and large‑volume manufacturing runs.

Key Features

• Bright red 7‑segment display provides clear numeric readout in low‑light conditions
• Standard 10‑pin common cathode layout simplifies wiring and multiplexing
• Compact 0.56‑inch height fits tight spaces and low‑profile designs
• Durable plastic housing with metal leads ensures long‑term reliability
• Responsive technical support and comprehensive documentation for easy integration

FAQ

What is the difference between common cathode and common anode displays?

In a common cathode display, all the cathodes of the LED segments are connected together and share a common ground, while each segment is driven by applying a positive voltage. In a common anode display, the anodes are shared, and each segment is turned on by pulling its cathode low. The uxcell tube uses a common cathode configuration, which is often preferred for multiplexed driving schemes.

Can I use this LED tube with a 5 V microcontroller?

Yes, the uxcell LED digital tube is compatible with 5 V logic levels. Each segment typically requires about 2 V forward voltage, so you can connect the segments directly to a microcontroller’s output pins through appropriate current‑limiting resistors to protect the LEDs and the controller.

What is the recommended current limiting resistor value?

For a 5 V supply and a forward voltage of approximately 2 V per segment, a resistor value of around 150 Ω to 220 Ω is commonly used to limit the current to 20 mA per segment. The exact value may be adjusted based on desired brightness and power considerations.

Is the tube suitable for outdoor use?

The uxcell LED digital tube is designed for indoor applications and standard environmental conditions. While the red LEDs are bright, the plastic housing is not rated for extreme weather or direct exposure to moisture. For outdoor installations, additional protective enclosures or sealing measures are recommended.

How many tubes are included in the package?

The product package contains ten individual LED digital tubes, allowing you to build multi‑digit displays or keep spares on hand for future projects.
