4 Digit 7 Segment LED Display Board WWZMDiB Arduino 5-Piece Red

Description

Product Overview

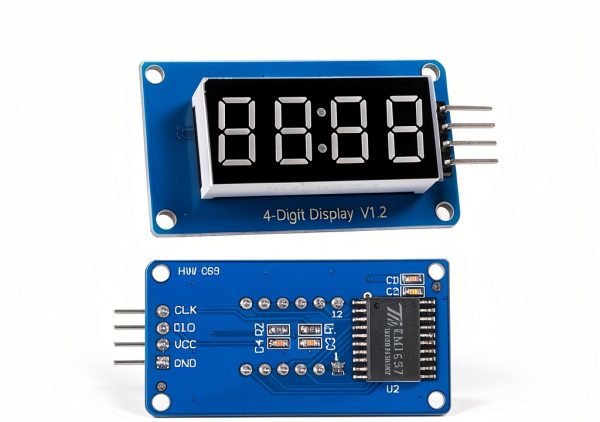

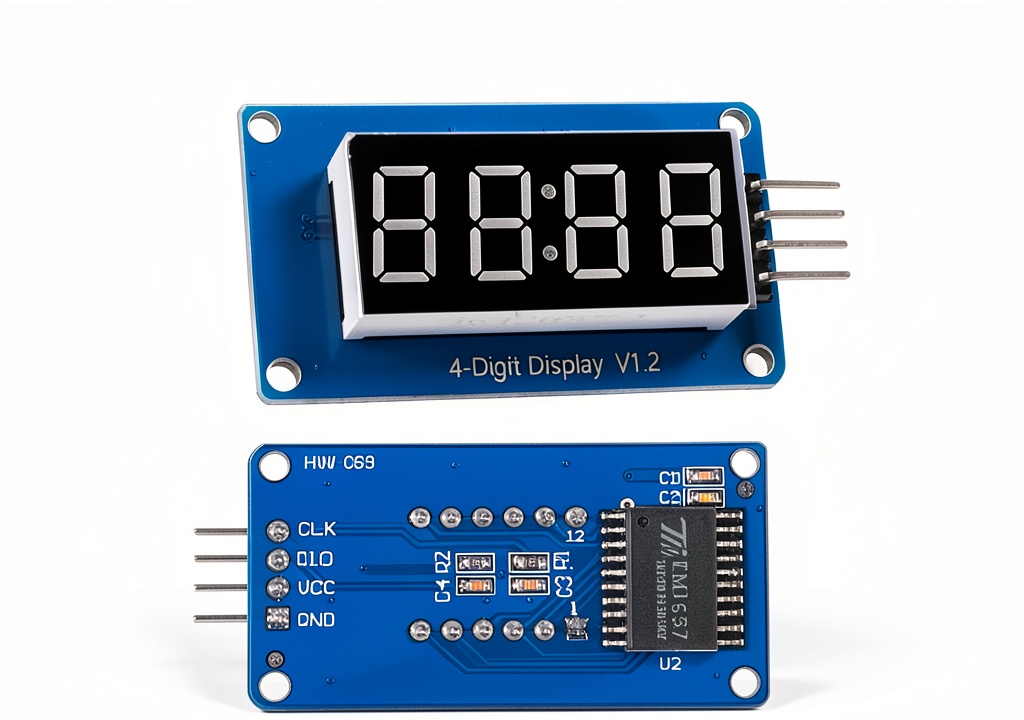

The WWZMDiB 4-digit 7-segment LED display board is a compact optoelectronic module engineered for seamless integration with Arduino and compatible microcontroller platforms. Built around the reliable TM1637 driver IC, the board drives four 8‑segment red LEDs using only four pins—ground, power, data (DIO), and clock (CLK). This minimal pin requirement simplifies circuit design and reduces wiring complexity, allowing developers to focus on functionality rather than hardware constraints.

Each digit offers eight segments plus a decimal point, enabling the display of numbers, basic letters, and simple symbols. The module operates at a wide voltage range of 3.3 V to 5 V DC, making it compatible with both low‑power and standard Arduino boards. Current consumption varies between 30 mA (idle) and 80 mA (full brightness), and the built‑in grayscale control provides eight levels of brightness adjustment, ensuring optimal visibility in diverse lighting conditions.

Physically, the board measures 4.69 × 3.39 × 0.55 inches and weighs just 1.76 ounces, making it lightweight and easy to mount on prototype boards, enclosures, or custom PCBs. The package includes five identical modules, each pre‑populated with the TM1637 driver and ready for immediate use. The red LED color delivers high contrast against dark backgrounds, a feature especially valuable for industrial instrumentation, hobbyist clocks, and educational kits.

Usage

Designed with versatility in mind, this display board fits a broad range of applications. In educational settings, instructors can demonstrate binary‑to‑decimal conversion, timing circuits, and basic user‑interface design. Makers and hobbyists often employ the module in digital clocks, temperature monitors, voltage meters, and simple game scoreboards. Its compact size and low power draw also make it suitable for battery‑powered portable devices, such as handheld timers or wearable counters.

For industrial and scientific projects, the board serves as a clear visual indicator for process control panels, sensor readouts, and equipment status displays. The adjustable grayscale ensures readability under bright ambient light or in dimly lit environments, while the four‑pin interface allows integration into existing control systems without extensive redesign.

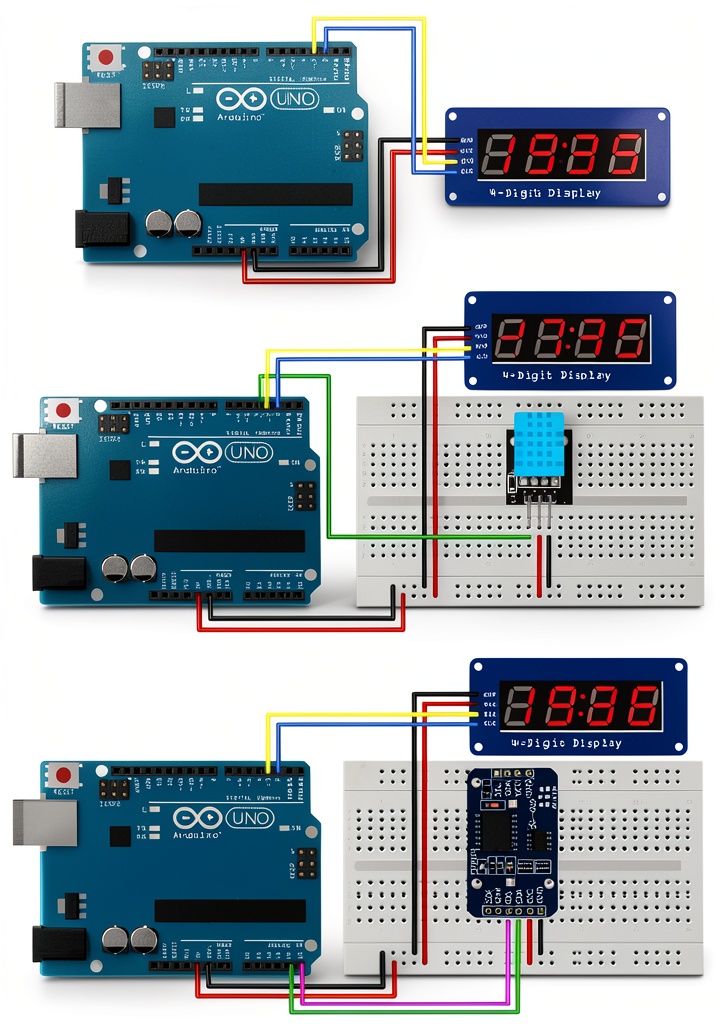

Because the module is compatible with both 3.3 V and 5 V logic levels, developers can pair it with a variety of microcontrollers, including the popular Arduino Uno, Nano, Mega, as well as ESP32, STM32, and Raspberry Pi Pico boards. The straightforward wiring—ground, VCC, DIO, and CLK—means that even beginners can achieve a functional display within minutes, using only a few lines of code from the widely available TM1637 libraries.

Why Choose Us

Choosing the WWZMDiB 4‑digit LED display means opting for a product that balances performance, reliability, and ease of use. Each module undergoes rigorous quality testing to ensure consistent brightness, accurate segment illumination, and long‑term durability. The ARM‑based processor architecture of the host boards, combined with the proven TM1637 driver, guarantees stable operation even under rapid refresh rates.

Our commitment to customer satisfaction extends beyond the product itself. We provide comprehensive documentation, including wiring diagrams, example Arduino sketches, and troubleshooting guides. Should you encounter any issues, our technical support team is available to assist with configuration, code integration, and hardware compatibility questions.

Furthermore, the package of five modules offers cost‑effective scalability for projects that require multiple displays, such as multi‑digit counters or synchronized panel arrays. By purchasing a single bundle, developers reduce inventory complexity and benefit from a uniform set of components that share identical specifications and performance characteristics.

Key Features

• Easy four‑pin connection simplifies wiring and speeds up prototyping.
• Adjustable eight‑level grayscale provides optimal visibility in any lighting condition.
• Wide operating voltage (3.3 V‑5 V) ensures compatibility with most microcontroller platforms.
• Compact, lightweight design fits into tight spaces and reduces overall system weight.
• Comes with five pre‑assembled modules and dedicated technical support for hassle‑free integration.

FAQ

What microcontrollers are compatible with this display?

The board works with any 3.3 V or 5 V logic microcontroller, including Arduino Uno, Nano, Mega, ESP32, STM32, and Raspberry Pi Pico. The TM1637 driver library is available for all major platforms.

How do I adjust the brightness of the display?

Brightness is controlled via an 8‑level grayscale command sent through the data line. Most TM1637 libraries include a simple function such as setBrightness(level) where level ranges from 0 (off) to 7 (maximum).

Can the display show letters or only numbers?

While primarily designed for numeric output, the 8‑segment layout can render a limited set of alphabetic characters (A, b, C, d, E, F) and basic symbols, making it suitable for simple textual indications.

Is the module suitable for battery‑powered projects?

Yes. With a typical current draw of 30 mA at low brightness and up to 80 mA at full brightness, the display can operate for many hours on standard AA or Li‑ion batteries, especially when using lower grayscale settings.

What is included in the package?

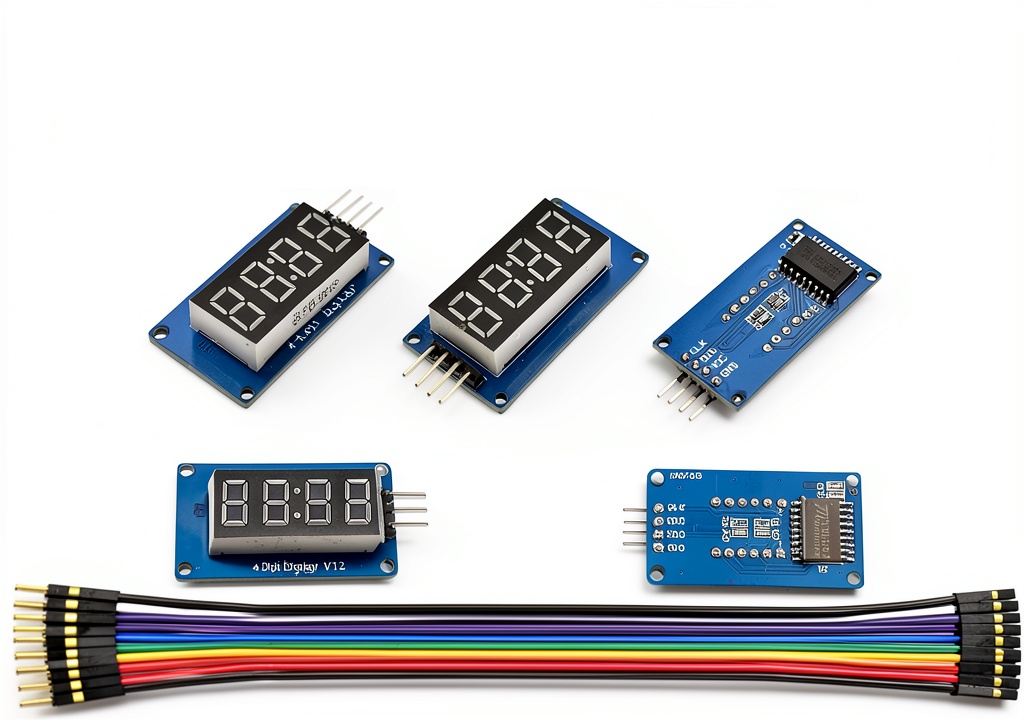

The package contains five identical 4‑digit LED display modules, a quick‑start guide, wiring diagrams, and a link to online code examples. No additional components are required for basic operation.
