Product Overview

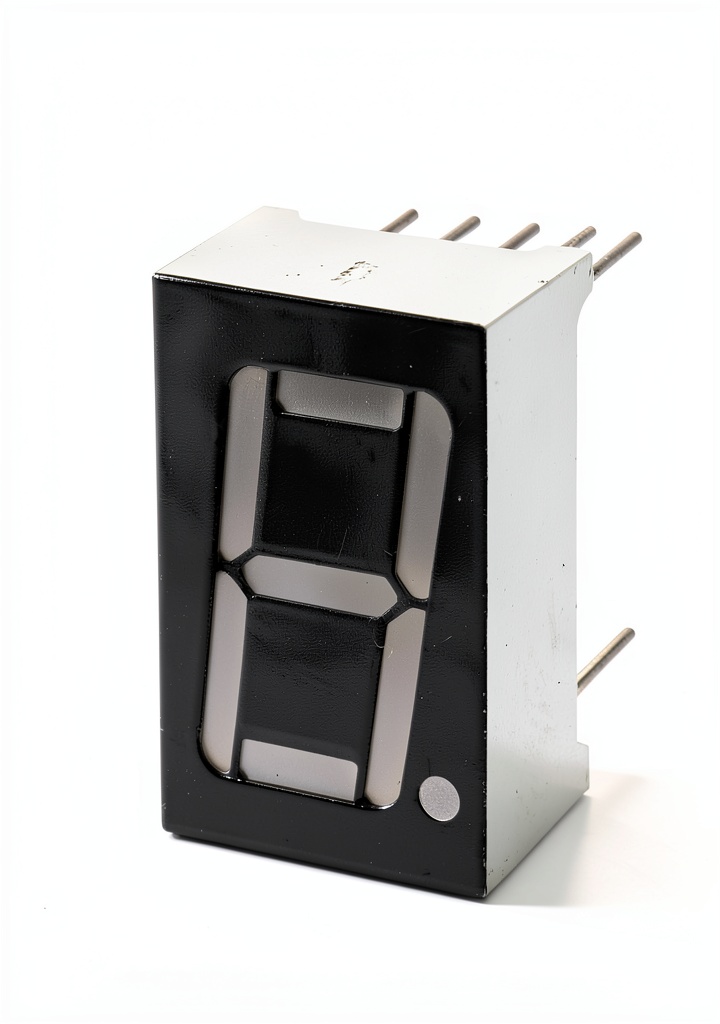

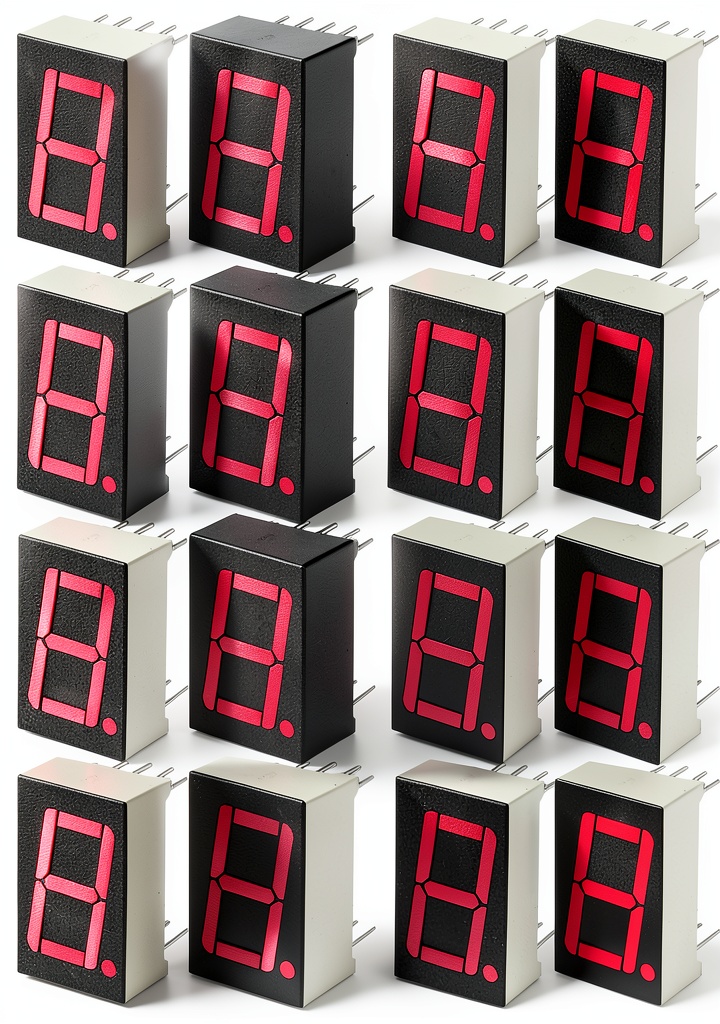

The WWZMDiB 20‑piece 0.56″ red 7‑segment display set is engineered for precision and durability, delivering clear numeric output across a variety of applications. Each module features a common cathode configuration, simplifying circuit design and allowing multiple digits to share a single ground reference. Constructed from high‑quality LED material, the displays emit a vivid red light that remains consistent over extended operating periods, even under continuous use.
Measuring just 0.56 inches in height, these compact displays fit seamlessly into tight spaces, making them ideal for miniature dashboards, handheld devices, and intricate prototype layouts. The ten‑pin layout provides dedicated segment control, enabling developers to drive each segment individually for custom character rendering or animation effects. All components are tested to meet stringent industrial standards, ensuring reliable performance in both hobbyist projects and professional equipment.
Beyond the visual appeal, the set includes comprehensive documentation that outlines wiring diagrams, pin assignments, and recommended driving circuits. This guidance reduces development time and helps users avoid common pitfalls associated with LED segment displays. Whether you are building a simple counter or a complex multi‑digit readout, the WWZMDiB kit offers the flexibility needed to bring your ideas to life.
Each display is packaged with protective anti‑static material to prevent damage during shipping and handling. The robust 2.46‑ounce total weight of the set provides a solid feel without being overly heavy, striking a balance that suits both desktop prototyping stations and portable test rigs. The package dimensions of 4.13 x 2.99 x 0.71 inches ensure easy storage and quick access when you need to replace or expand your display array.
Manufactured by WWZMDiB, a brand recognized for its commitment to optoelectronic innovation, this product reflects years of expertise in LED technology. The series designation WWZ0501 indicates a lineage of proven designs, and the model number reinforces compatibility with a wide range of driver ICs and microcontroller platforms. With an Amazon Best Sellers Rank of #14 in LED Segment Displays, the kit has earned the trust of a growing community of engineers and makers.
Usage
These red 7‑segment displays excel in educational environments, where students learn about binary counting, multiplexing, and visual feedback mechanisms. In a classroom setting, instructors can demonstrate how each segment corresponds to a specific binary value, fostering a deeper understanding of digital logic.
For hobbyists, the displays are perfect for DIY projects such as digital clocks, temperature readouts, and scoreboards. Their common cathode architecture simplifies integration with popular microcontrollers like Arduino, Raspberry Pi, and ESP32, allowing creators to focus on software development rather than complex hardware configurations.
In industrial applications, the bright red illumination provides high visibility in low‑light conditions, making the displays suitable for safety panels, equipment status indicators, and process monitoring dashboards. The 10‑pin design supports straightforward wiring to PLCs and industrial driver modules, reducing installation time and minimizing potential errors.
Because the displays are rated for continuous operation, they can be employed in long‑term monitoring systems that require reliable numeric feedback without frequent maintenance. Their compact footprint also enables integration into confined enclosures, such as medical devices, automotive instrument clusters, and portable measurement tools.
Why Choose Us
Choosing the WWZMDiB 7‑segment display set means partnering with a manufacturer that prioritizes quality control at every production stage. Each LED segment undergoes rigorous testing for brightness uniformity, color consistency, and longevity, ensuring that your final product meets professional standards.
Our commitment to customer satisfaction extends beyond the point of sale. We provide responsive technical support, detailed datasheets, and application notes that guide you through common design challenges. Whether you encounter wiring questions or need advice on multiplexing strategies, our expert team is ready to assist.
We also offer a hassle‑free return policy and a warranty that covers manufacturing defects, giving you confidence that your investment is protected. This level of after‑sales service distinguishes us from competitors who may lack dedicated support channels.
By selecting our display kit, you benefit from a proven track record of reliability, as reflected in the product’s high ranking among LED segment displays on major e‑commerce platforms. Our focus on continuous improvement means that each batch incorporates feedback from real‑world deployments, resulting in ever‑better performance and user experience.
Key Features
- Bright red LED segments provide high visibility in low‑light environments, enhancing safety and readability.
- Common cathode design simplifies wiring and reduces the number of required control lines for multi‑digit displays.
- Compact 0.56″ size fits into tight spaces, ideal for miniature devices and dense circuit boards.
- Durable construction with anti‑static packaging ensures long‑term reliability and protection during handling.
- Dedicated customer support and comprehensive documentation help you troubleshoot and accelerate development.
FAQ
What is the difference between common cathode and common anode displays?

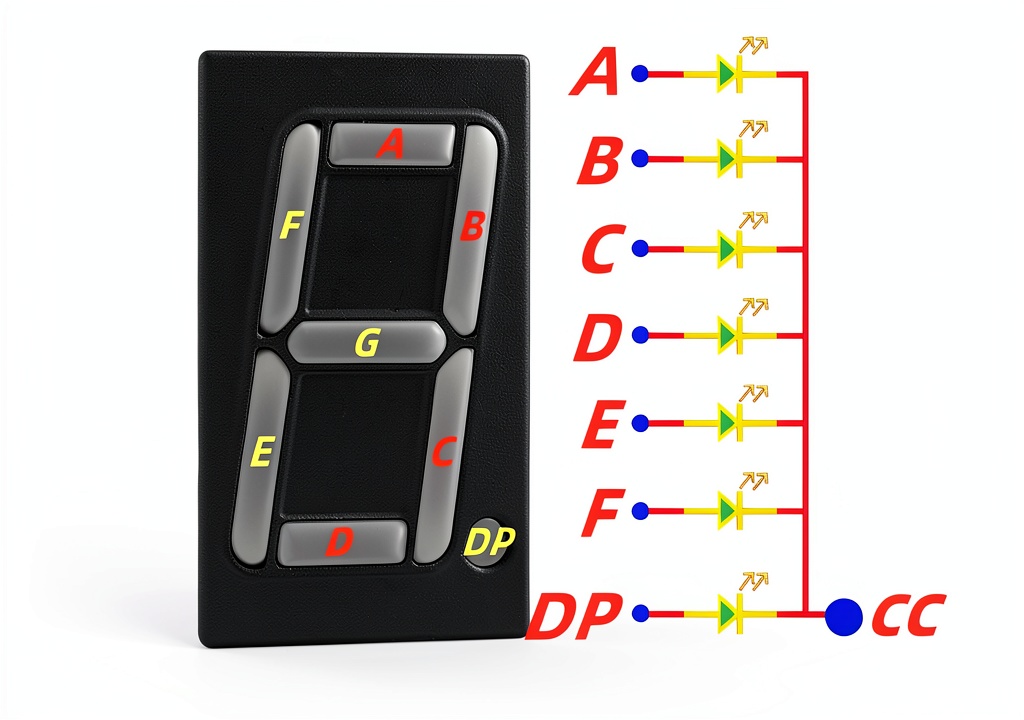

In a common cathode display, all the cathodes of the LED segments are connected together, and each segment is turned on by applying a positive voltage to its anode. This configuration simplifies multiplexing and is often preferred for microcontroller projects.
Can these displays be driven directly from a microcontroller?
Yes, the 10‑pin layout allows direct connection to GPIO pins, but using a driver IC or transistor array is recommended for higher current handling and to protect the microcontroller.
What is the typical forward voltage and current for each segment?
Each red LED segment typically operates at a forward voltage of around 2.0 V and a forward current of 20 mA, providing bright illumination while staying within safe operating limits.
Are the displays compatible with multiplexing techniques?
Absolutely. The common cathode configuration is well‑suited for multiplexed operation, allowing you to control multiple digits with fewer I/O pins by rapidly switching the common lines.
Do you offer bulk pricing for larger orders?
Yes, we provide volume discounts for bulk purchases. Please contact our sales team with your required quantity to receive a customized quote.
