Description
Product Overview

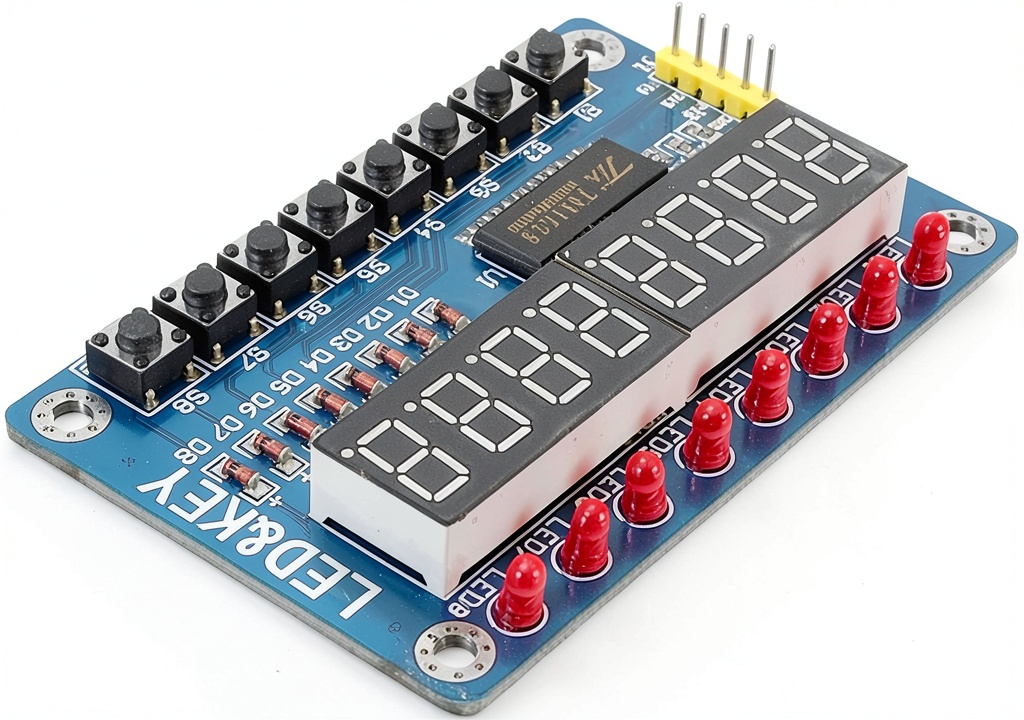

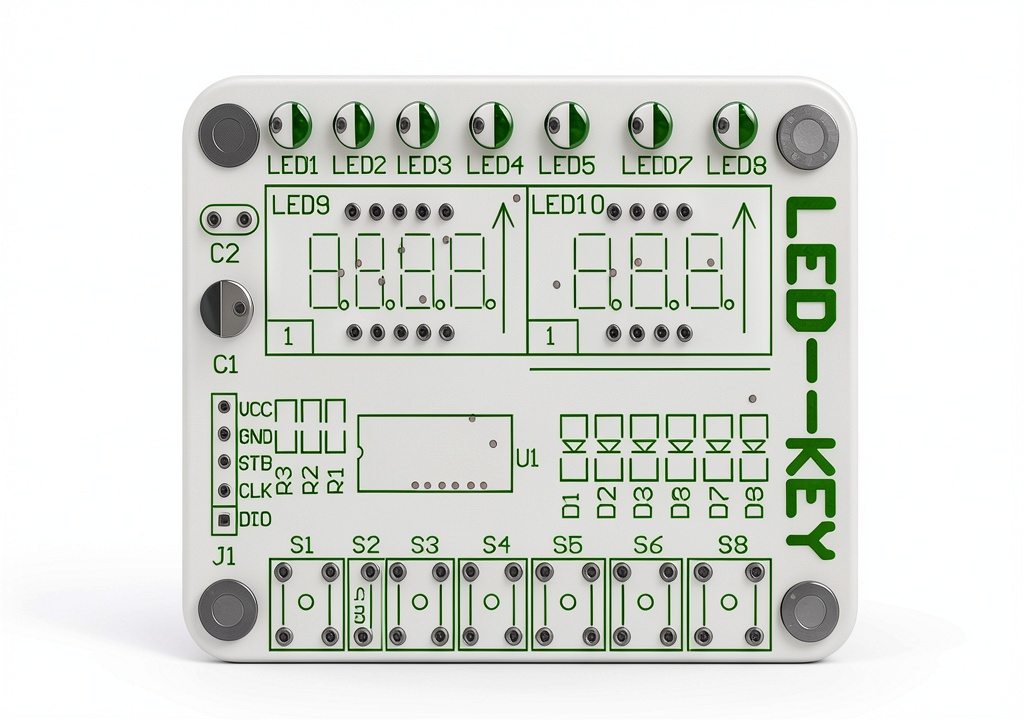

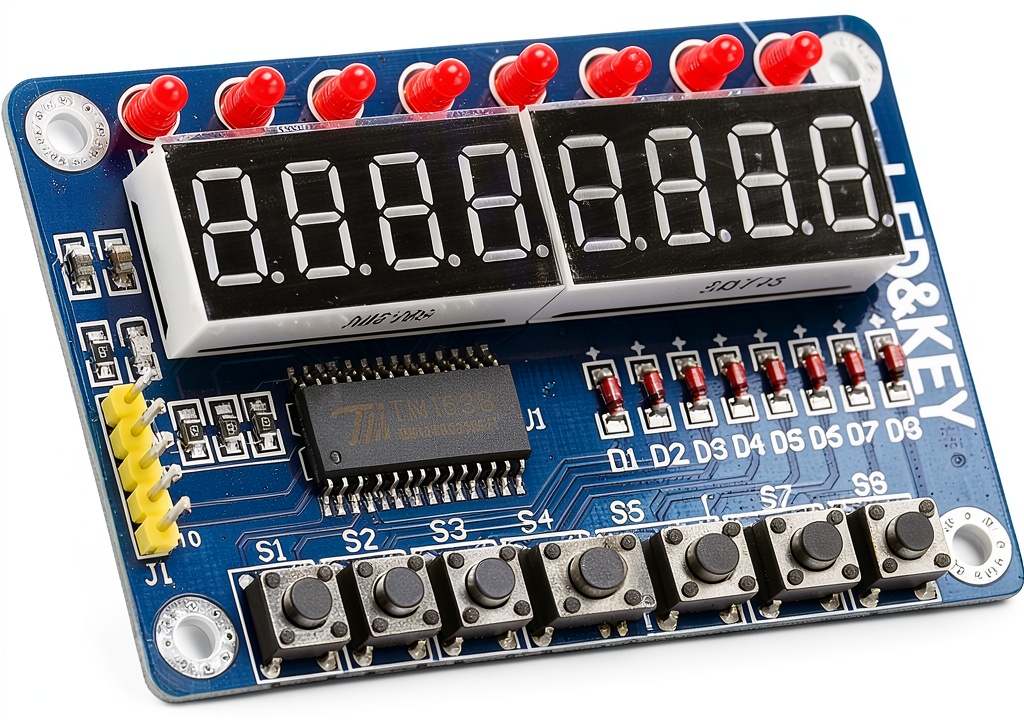

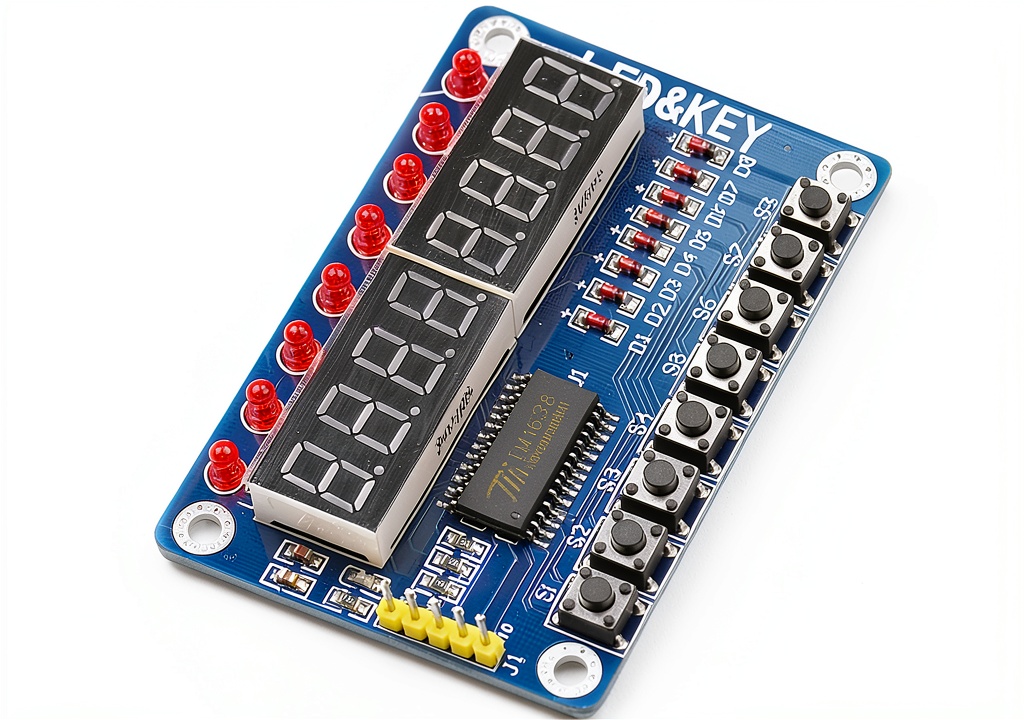

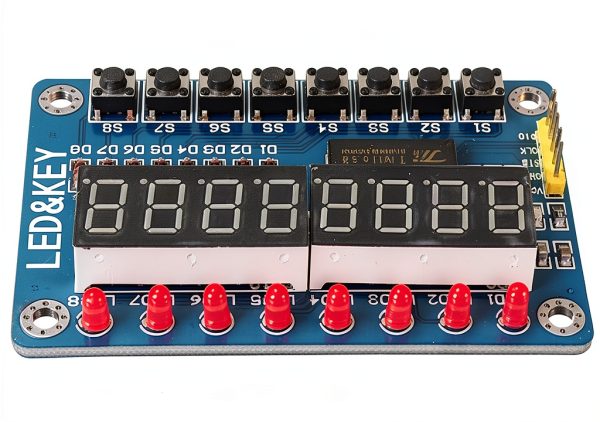

The HiLetgo TM1638 LED tube display module is engineered to provide a reliable and versatile visual interface for a wide range of electronic applications. Housed in a compact blue SOP28 package, the module integrates eight high‑intensity LEDs and eight tactile push‑buttons, all managed through a single serial communication line. This design reduces wiring complexity and frees valuable board space, making it an ideal choice for developers who need to convey status information or accept user input without resorting to bulky discrete components.
At the heart of the module lies a dedicated driver IC that handles LED multiplexing, current regulation, and key scanning. The driver supports a 10‑segment by 8‑digit display mode, allowing each LED to be individually addressed for precise control over brightness and pattern generation. An adjustable duty‑cycle circuit provides eight levels of brightness, enabling the display to remain legible under bright ambient light or to conserve power in low‑light environments.
Power consumption is optimized through a CMOS process that minimizes leakage currents while delivering fast switching speeds. The module operates at a typical oscillation frequency of 450 kHz ±5 %, ensuring reliable data transfer even in electrically noisy settings. A built‑in power‑on reset circuit guarantees that the display starts in a known state, preventing erratic behavior during power‑up sequences.
Beyond its technical specifications, the TM1638 module is designed with user convenience in mind. The three‑wire serial interface (CLK, STB, DIO) aligns perfectly with the pinouts of popular development boards such as Arduino, AVR, and ARM‑based microcontrollers. This compatibility means that developers can integrate the module with minimal code changes, leveraging existing libraries and examples to accelerate prototyping and production timelines.
Usage
In consumer electronics, the TM1638 module finds a natural home in appliances that require clear status indicators and simple user interaction. Refrigerators, air conditioners, and home theater systems often employ segmented LED displays to show temperature settings, mode selections, or error codes. By pairing the module with a microcontroller, engineers can create intuitive interfaces that respond instantly to button presses, enhancing the overall user experience.
For hobbyists and makers, the module serves as an excellent teaching tool for learning about multiplexed displays, key scanning, and serial communication protocols. Its straightforward wiring diagram and abundant online resources make it a favorite for DIY projects ranging from digital clocks and scoreboards to custom game controllers and interactive art installations. The module’s compact size also allows it to be incorporated into wearable electronics, portable devices, and robotics platforms where space is at a premium.
Industrial applications benefit from the module’s robustness and reliability. In monitoring equipment, the eight LEDs can be programmed to represent sensor thresholds, alarm states, or operational modes, while the buttons provide on‑the‑fly adjustments without the need for additional input hardware. The module’s ability to operate over a wide temperature range and its resistance to electromagnetic interference make it suitable for deployment in harsh environments such as manufacturing floors, automotive diagnostics, and field‑portable instrumentation.
Why Choose Us
Choosing the HiLetgo TM1638 module means selecting a product that combines quality manufacturing with thoughtful engineering. Each unit undergoes rigorous testing to verify LED uniformity, button responsiveness, and communication integrity, ensuring that customers receive a component that performs consistently out of the box. The module’s blue housing not only provides aesthetic appeal but also offers a degree of UV protection, extending the lifespan of the LEDs under prolonged exposure to light.
Our commitment to customer support extends beyond the point of sale. Buyers gain access to comprehensive documentation, including schematic diagrams, pin‑out tables, and example code snippets for popular development platforms. Should any questions arise during integration, our technical support team is available to provide guidance, troubleshooting assistance, and recommendations for optimizing performance in specific applications.
In addition to the standard warranty, we offer an optional extended service plan that covers replacement of defective units and provides priority access to firmware updates that may enhance functionality or address emerging security considerations. This level of after‑sales service reflects our confidence in the durability of the TM1638 module and our dedication to fostering long‑term relationships with engineers, educators, and makers alike.
Key Features
- Eight high‑brightness LEDs provide clear visual feedback in any lighting condition
- Eight tactile buttons enable intuitive user input without extra circuitry
- Simple three‑wire serial interface reduces wiring complexity for Arduino, AVR, and ARM platforms
- Adjustable brightness levels help conserve power and improve readability
- Responsive customer support and comprehensive documentation ensure smooth integration
FAQ
What voltage does the TM1638 module require?
The module operates from a 5 V supply, which is compatible with most hobbyist development boards and many industrial microcontrollers. It includes internal regulation to protect the LEDs and driver circuitry from voltage spikes.
Can I control the LEDs and read the buttons simultaneously?
Yes. The TM1638 driver uses time‑division multiplexing, allowing the microcontroller to send display data while the module scans the button matrix in the background. This enables real‑time updates without sacrificing responsiveness.
Is the module suitable for battery‑powered projects?
Absolutely. The adjustable duty‑cycle brightness control lets you lower LED intensity to reduce current draw, making the module an efficient choice for portable or battery‑operated devices.
How do I connect the module to an Arduino?
Connect the CLK pin to any digital I/O pin, the STB pin to another digital pin, and the DIO pin to a third digital pin. Use the provided TM1638 library, which handles the low‑level timing and data framing for you.
What is the maximum number of modules I can chain together?
Multiple TM1638 modules can be daisy‑chained on the same serial bus by connecting the DIO and CLK lines in parallel and using separate STB lines for each module. This allows you to expand the display area while keeping the wiring simple.
